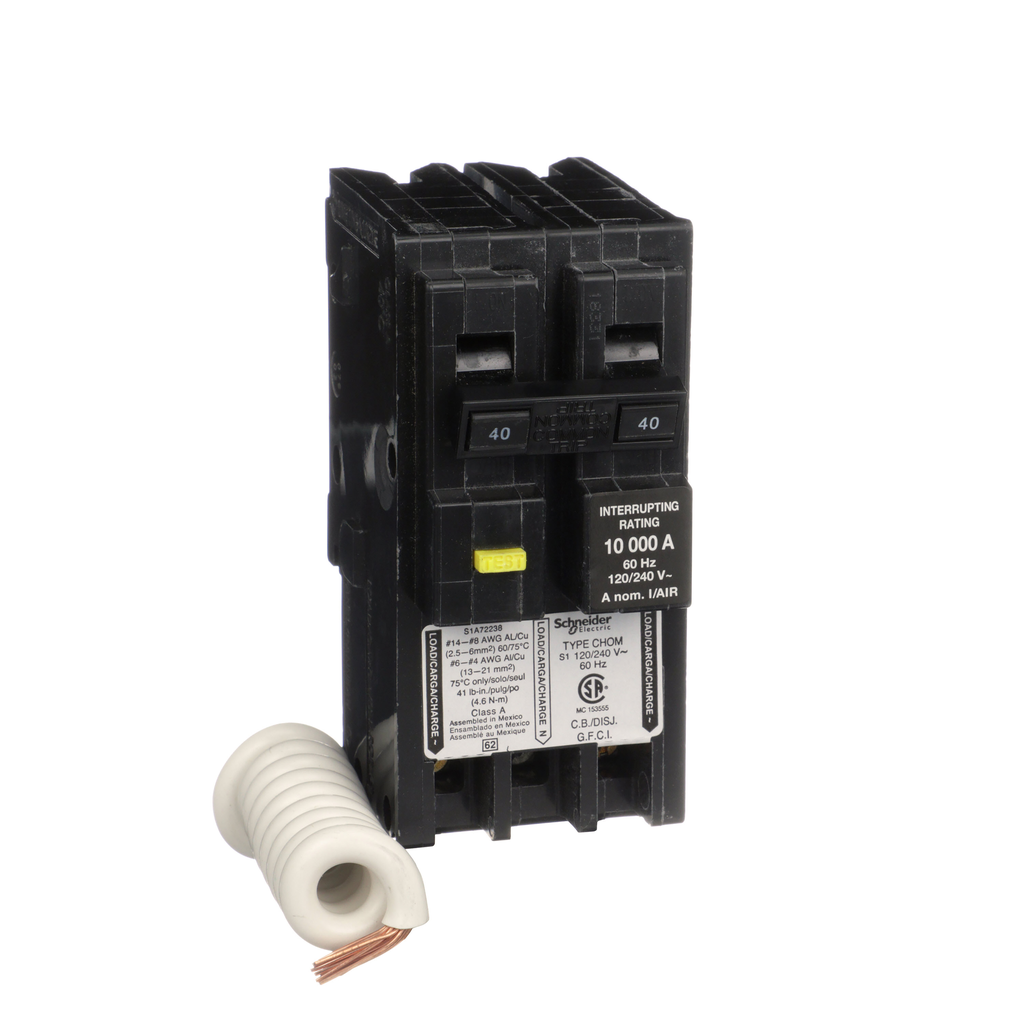

CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. It includes a ground fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified.
Read more
Specification & Document
Manufacturer Product Code
89703
Amperage
40
Brand
[{"en":"HomeLine CHOM","fr":""}]
Breaker Case Type
[{"en":"Standard","fr":"Standard"}]
Breaker Frame Type
CHOM
Breaker Mounting/Termination Type
[{"en":"Plug In","fr":"Branchable"}]
Breaker Trip Type
[{"en":"Thermal Magnetic","fr":"Thermique Magnetique"}]
Interrupting Rating
10KA
Manufacturer
SCHNEIDER ELECTRIC
Poles
2
Voltage
120-240
