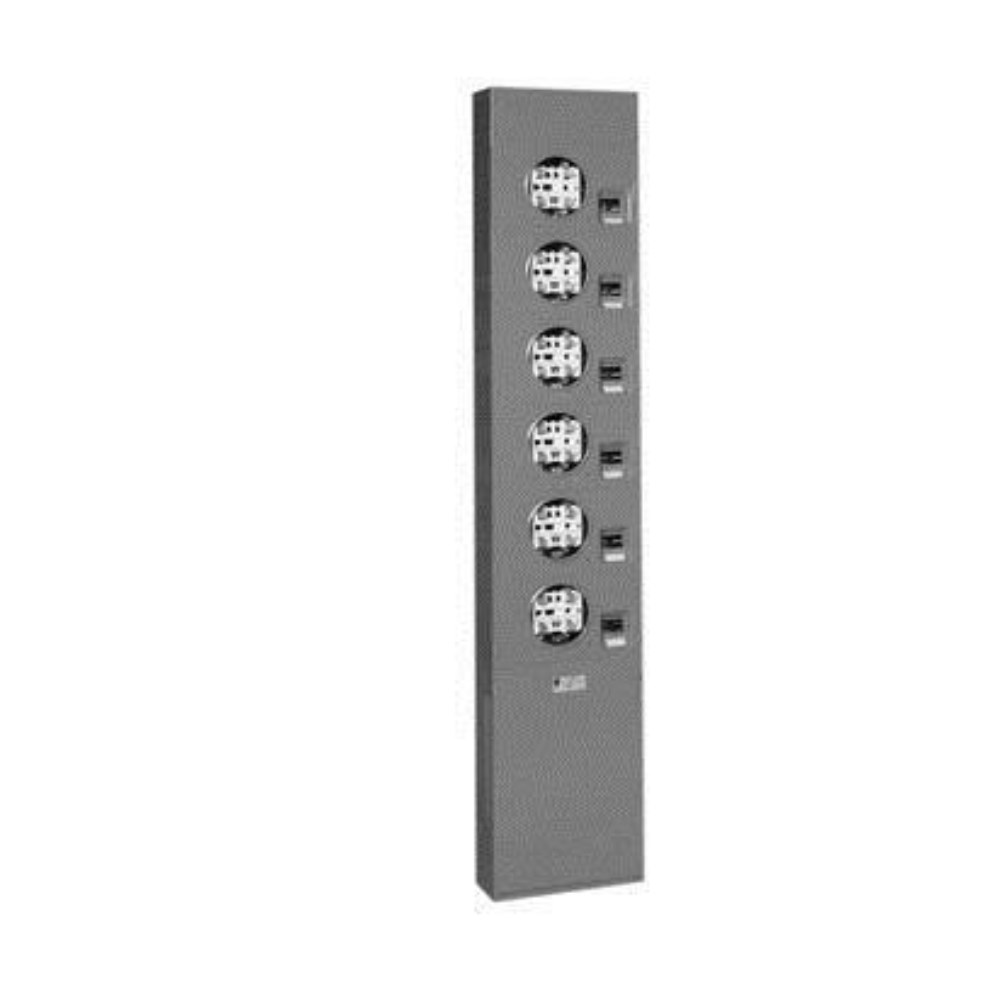

METER STACK 3-SUB SERVICES 200A 4-JAW 120/240V 1PH 3W

SCH-MC43L200B
  • Amperage: 200
  • Carton Quantity: 1
  • Country Origin: MX
  • Enabled: Yes
  • Manufacturer: SCHNEIDER ELECTRIC
  • Manufacturer Catalogue: MC43L200B
  • Manufacturer Category: SMTC-37596
  • Manufacturer Product Code: 75749
  • Meter Centre Component: Meter Stack
  • Mfr Vendor ID: 599
  • Phase: 1
  • SPF Product ID: 142517
  • Unit of Measure: E
  • Unit Quantity: 1
  • UPC: 047569757495
  • Voltage: 120-240
  • Web Group: 1080201000000
  • Wires: 3
Features: • 400A to 1200A main bus capacity
• 100/125A, and 200A meter sockets with 4, 5, or 7 Jaws
• Meter stacks rated at 240 V Max., single or three phase
• Up to 200A sub-service capacity
• 2 or 3-pole sub-service circuit breakers
• Left-hand or right-hand entry available on all meter stacks
• Provision for top and/or bottom exiting of sub-service load wiring from all meter stacks
• CSA Type A “cold metering”
• Combined 125/200A meter stacks
• “Hook and Hang” provision/mounting rail
• Painted to an ASA49 grey finish

Square D Meter Centres are designed to provide a compact and versa tile metering and distribution centre to suit today's residential, commer cial, and industrial markets. Meter Centres now feature new combined 125/200A stacks in one sub-service as well as 3-high 125A 4 and 5 Jaw stacks. No other metering system provides the same advantages of in stallation convenience and subsequent time-saving economy. All metering stacks are shipped from the factory with meter sockets and vertical bus bars pre-installed, and require a minimum of on site labour time to install the circuit breakers and main bus links. At the site, the con tractor has only to bolt the individual enclosures together, install the re
quired circuit breakers, connect the main bus links together, and connect the individual distribution cables to their respective sub-service locations.

Screw-on, sealable covers over the meter sockets and circuit breakers are finished with a grey epoxy powder coating. Provision to lock and seal the circuit breaker handles in the “off” position has been made for the convenience of utilities and electrical inspectors. Circuit breakers required for 125A, 4/5 Jaw sub-service sections are of the 2-pole QWIK-OPEN® QOB Type. QOB breakers are available from 10-125A. Circuit breakers required for 100A 7 Jaw stacks are the 3-pole QD/QG circuit breakers and are available at 70A and 100A.

Square D QD/QG Type moulded case circuit breakers are required for 200A sub-service sections. Type QD circuit breakers are available in rat ings from 100A to 200A in both the 2- and 3-pole styles and have a 25,000A IC at 240 VAC. Type QG circuit breakers are available in rat ings from 100A to 200A in both 2- and 3-pole styles and have a 65,000A
IC at 240 VAC.

All meter stacks are designed for CSA Type A “cold metering” in which the individual sub-service breakers are connected on the line side of the meter sockets thereby protecting the meter and all electrical equipment installed subsequent to it.

These features, along with the modular design, produce a top quality Meter Centre that will provide dependable service well into the future.
