Marcus Transformer

CONTROL TRANSFORMER 50VA 120-12V ENCLOSED TYPE

MTC-MC50A MFG #: MC50A

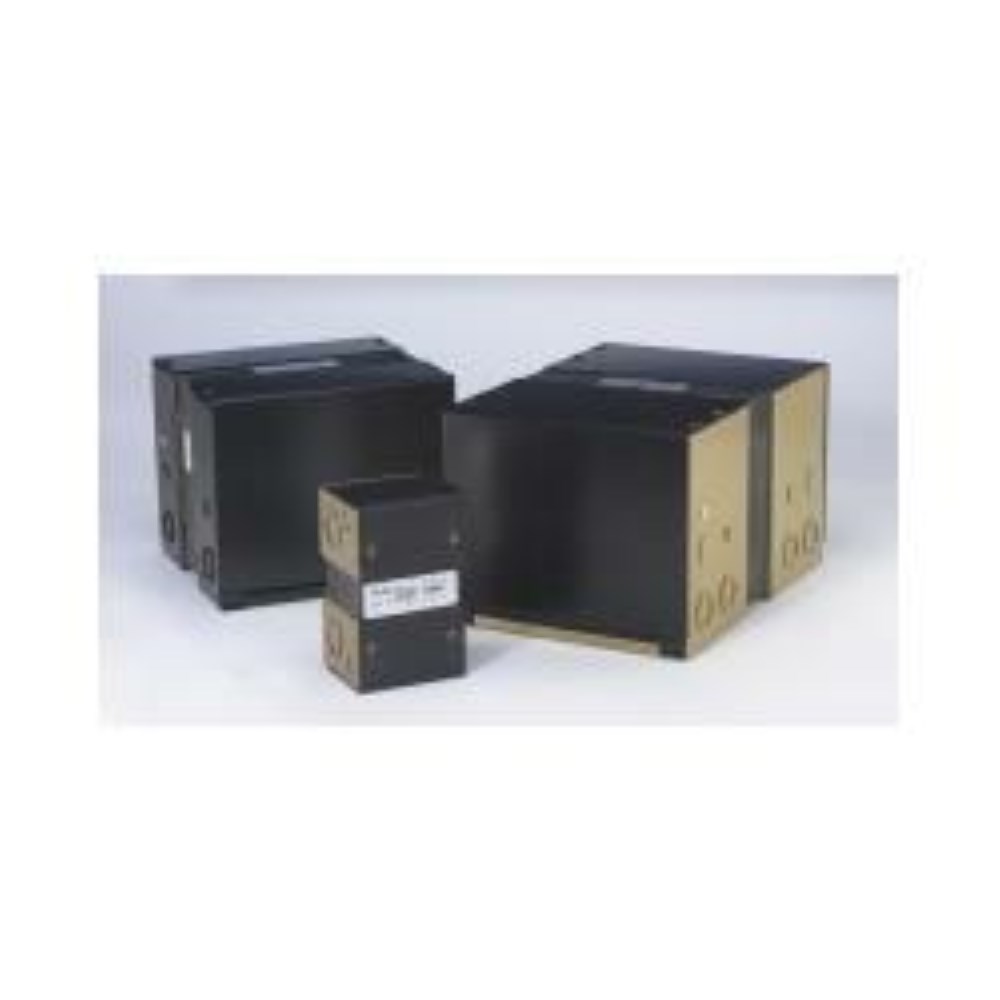

MC50A_1 - 8cc6de05-807e-4965-9db4-0f5a53128f88.jpg
  • Business Unit: Guillevin, Choice
  • GIC Enabled: Yes
  • Manufacturer: MARCUS TRANSFORMER
  • Manufacturer Catalogue: MC50A
  • Manufacturer Category: CONTROL
  • Mfr Vendor ID: 252
  • NEMA Rating: NEMA 1
  • Phase: 1
  • Primary Voltage: 120
  • Secondary Voltage: 12
  • SPF Product ID: 190162
  • Transformer Type: Control, Enclosed
  • Unique Item Code: MTC-MC50A
  • Unit of Measure: E
  • UPC: 755658202138
  • VA Rating: 50
  • Web Group: 1080601010000
  • Winding Material: Copper
MC - Single Phase Closed Type Industrial Control
Transformer

Rugged split side covers provide easy access to wiring compartments and
allow installation with either solid or flexible conduit
Many multi-voltage primary and secondary models increase range of
applications per unit
Solidly fixed terminals with standard combination screw connections
facilitate wiring
All Terminals clearly identified additive polarity markings
Every coil bobbin-wound for greater efficency and superior heat
evacutation capability
All models built with heat-proof insulation for compact size and long life

Standard electical knockouts and double "D" fuse knockouts are provided on
all units
All units can be mounted either vertically or horizontally with a unique
universal mounting plate which is directly interchangeable with many other
popular control transformers
Easily installed with key holes and mounting slots
All units come with a primary and secondary ground lug
All units CSA Certified & UL Listed
