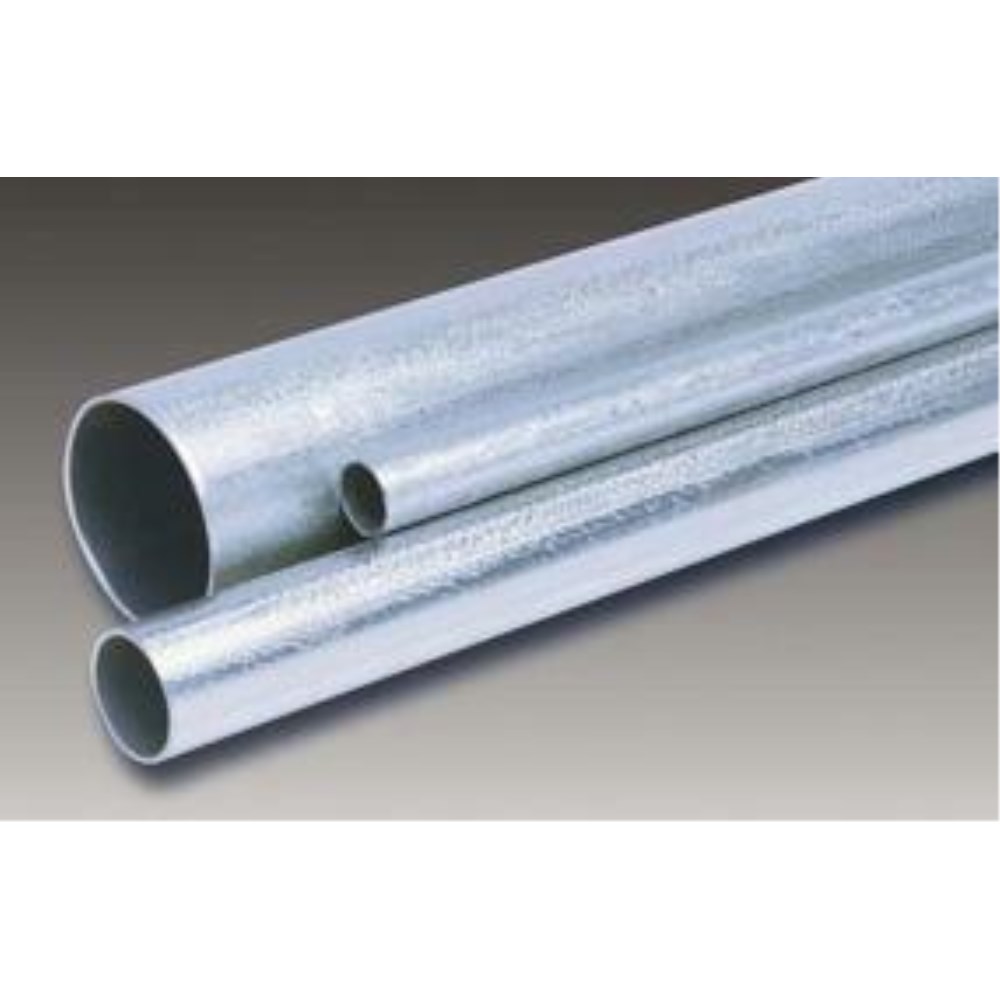

CONDUIT EMT 1-1/4"

CMB-CDE114
  • Best Seller: Yes
  • Conduit Trade Size: 1-1/4
  • Conduit Type: EMT
  • Enabled: Yes
  • Length: 10' (3.048 m)
  • Manufacturer: CONDUIT EMT
  • Manufacturer Catalogue: CDE114
  • Manufacturer Category: CONDUIT EMT
  • Manufacturer Product Code: 734644
  • Material: Steel
  • Special Attributes: Best Seller
  • SPF Product ID: 801556
  • Unit of Measure: C
  • Unit Quantity: 10
  • UPC: 623905016039
  • Web Group: 1050913000000
Manufactured for Long Life

Columbia-MBF® EMT is precision manufactured from high grade mild strip steel for exceptional durability and longlasting life. Columbia-MBF EMT is hot galvanized using a patented inline Flo-Coat™ process. This process combines
zinc, a conversion coating, and a clear organic polymer topcoat to form a triple layer of protection against corrosion and abrasion. E-Z Pull™ EMT combines strength with ductility, providing easy
bending, cutting and joining while resisting flattening, kinking and splitting. Available in sizes 1/2 (16) - 4 (103).

Coatings
Columbia-MBF’s EMT (Electrical Metallic Tubing) has a special low friction ID coating called E-Z Pull that greatly improves the slip properties between conduit and wire. With E-Z Pull EMT, wire pulls through the EMT smoothly and
easily, making installation easier and faster.

EMI Shielding
Columbia-MBF EMT is very effective in reducing electromagnetic field levels for encased power distribution circuits, shielding computers and other sensitive electronic equipment from the effects of electromagnetic interference.
For more information on EMT shielding, visit www.columbia-mbf.ca to obtain the GEMI (Grounding and Electro-Magnetic Interference) software analysis program.

Codes & Standards Compliance
Columbia-MBF EMT is Certified to Canadian Standards Association C22.2 No.83.1. As a metal raceway, EMT functions as an equipment bonding conductor when installed in compliance with the Canadian Electrical Code
(CEC), including Section 10 Grounding and Bonding and Section 12-1400 Electrical Metallic Tubing. Documentation is available in the GEMI (Grounding and Electro-Magnetic Interference) analysis software and related research studies
found at the www.columbia-mbf.ca website. Installation of EMT shall be in accordance with the Canadian Electrical Code and the CSA Certification information.

Specification Data
To specify Columbia-MBF EMT, include the following: Electrical Metallic Tubing shall be equal to that manufactured by Columbia-MBF Inc. EMT shall be hot galvanized steel O.D. with an organic corrosion resistant I.D. coating, and shall be
CSA Certified to Standard C22.2 No. 83.1 and manufactured in accordance with ANSI C80.3. Electrical Metallic Tubing (EMT) and True Color™ EMT

Electrical Metallic Tubing (EMT) and True Color™ EMT
Certified to Canadian Standards Association Safety Standard CSA C22.2 No.83.1 Manufactured in accordance with ANSI C80.3
