BOUTON-POUSSOIR 2-UNITÉS UP-DOWN BOÎTIER NEMA-1

Connectez-vous pour connaître les prix et la disponibilité

Description

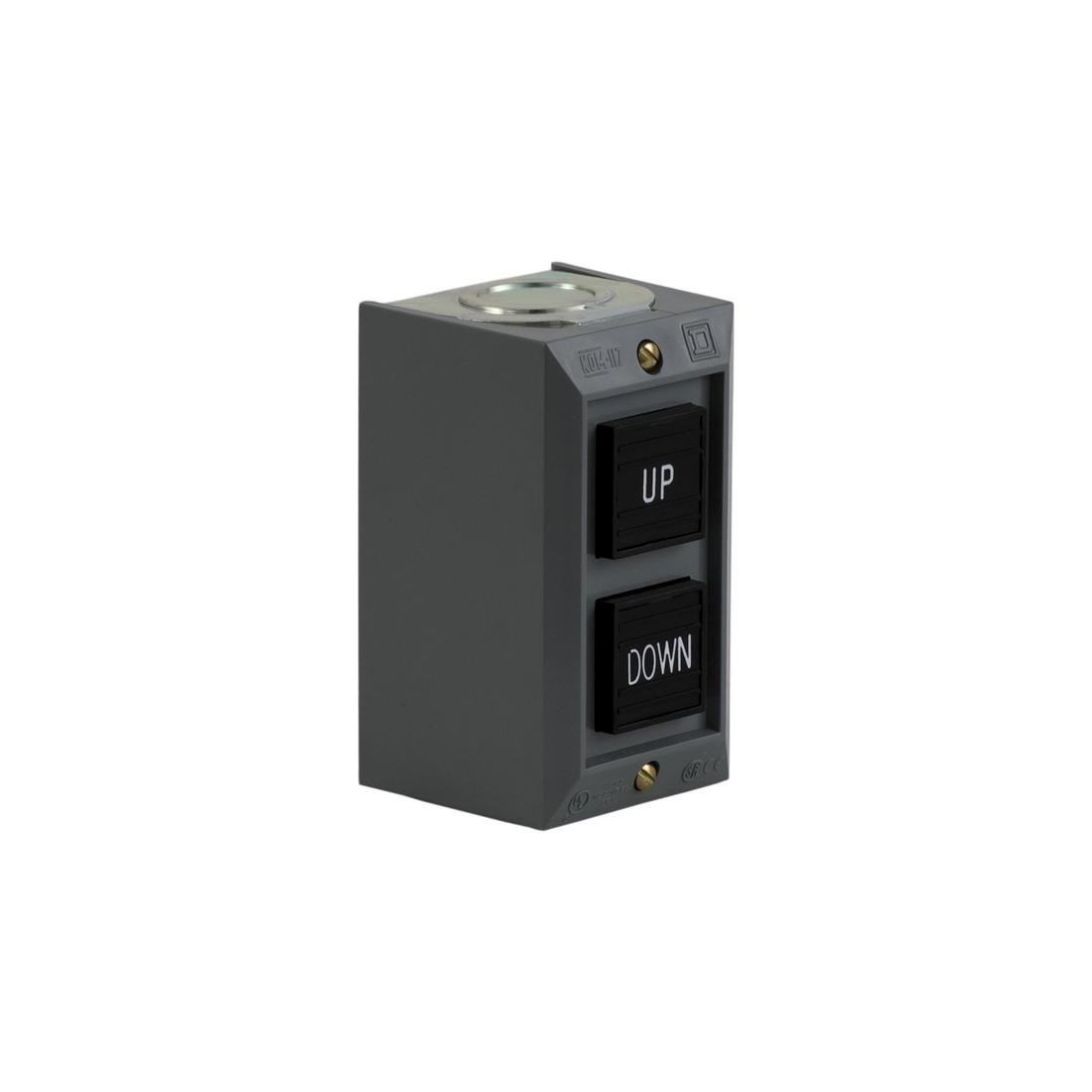

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a UP push button with a normally open contact and a DOWN push button with a normally open contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
