Schneider Electric - Altivar

Altivar 320

Variable Speed Drives

0.25 to 20 hp (0.18 to 15kW) (3 phase)

For synchronous and asynchronous Motors

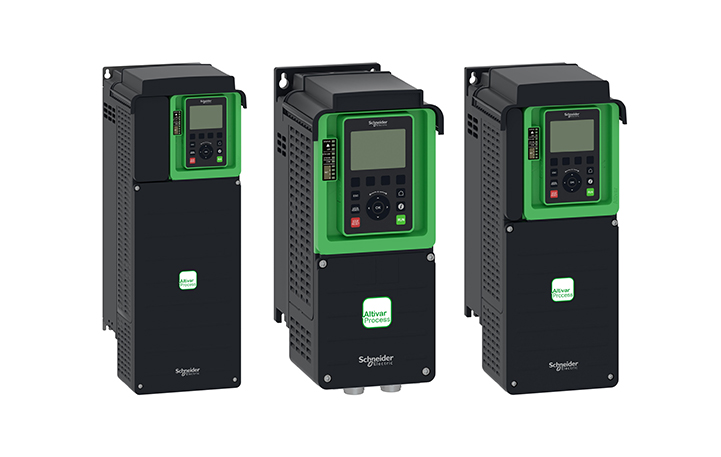

Altivar 630

Variable Speed Drives

1 to 500 hp (0.75 kW to 315 kW)

Process drives for fans, pumps or compressors

Altivar 930

Variable Speed Drives

1 to 500 hp (0.75 kW to 315 kW)

Process drives for fans, pumps or compressors

Soft Starters

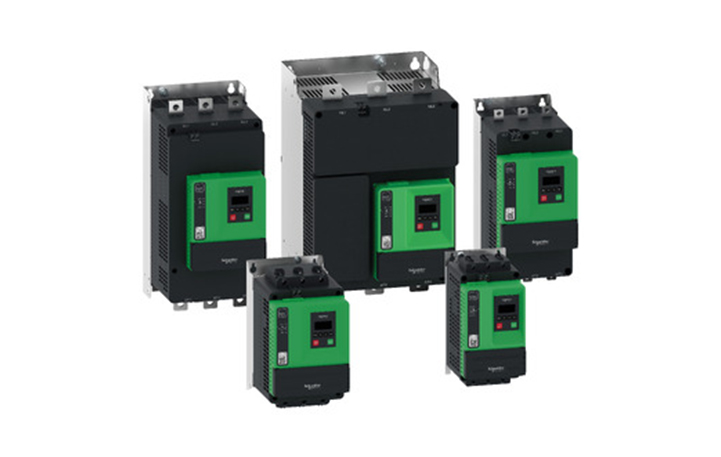

Altivar ATS430

Soft Starters

3 to 500 hp (4 to 400kW)

High reliability soft starters.

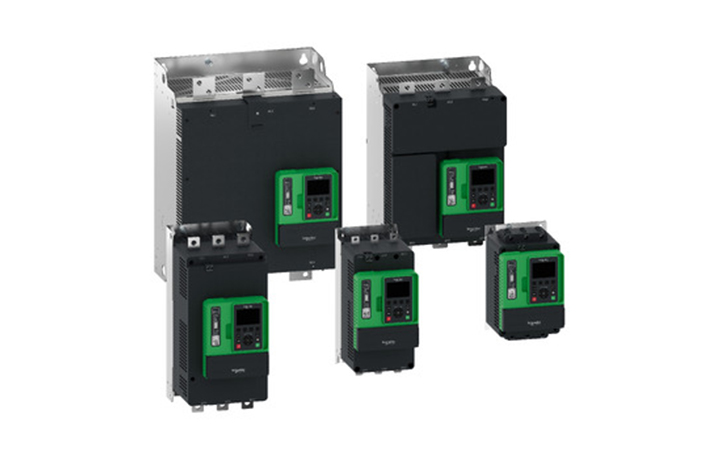

Altivar ATS490

Soft Starters

3 to 1200 hp (4 kW to 900 kW)

Advanced motor management

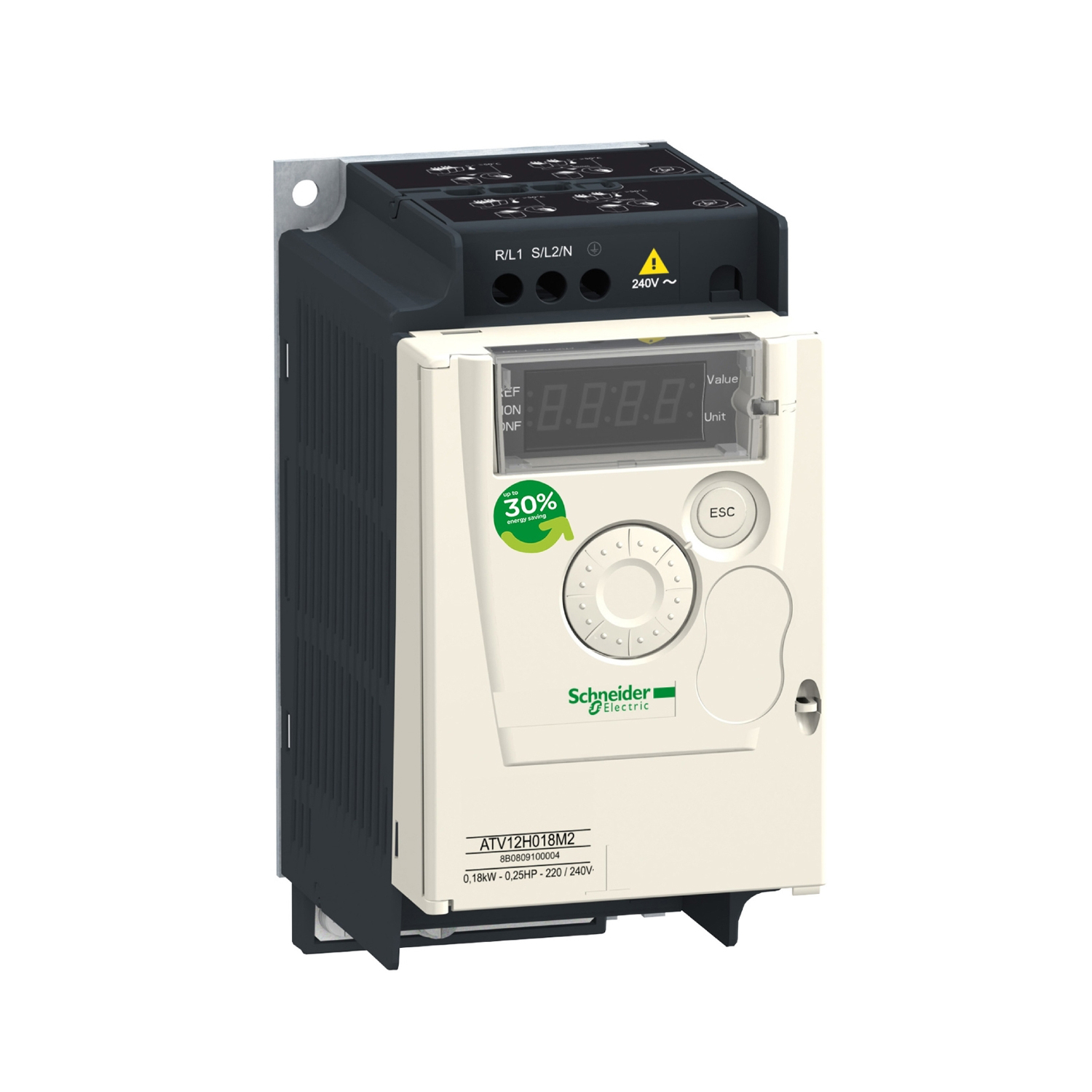

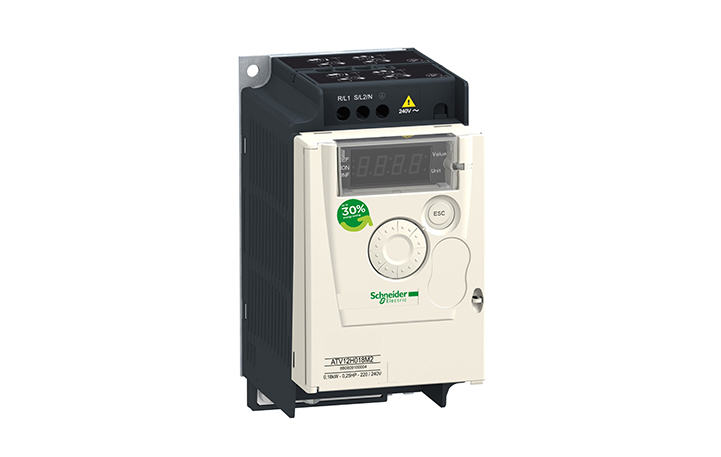

Altivar 12 Drives

Discover our full range of asynchronous drives for simple machines - 0.25-5HP, 240v

Compact design fits anywhere

The smallest drive with integrated EMC for compact machines, allowing for the replacement of similar drives while reducing your footprint and build costs.

Simple, powerful and cost effective

Powerful drives that simplify functions but don’t compromise on quality.

Easy integration reducing design time

Speed up your design time and retrofit on practically any network topology through integrated universal Modbus

Rapid commissioning / recommissioning

Instantly copy and paste your machine configurations through the innovative multi-loader tool and superior Schneider Electric support

0.25-5HP drive

For asynchronous motors

240v simple machine control

Shop Altivar 12

Small Machine Drives

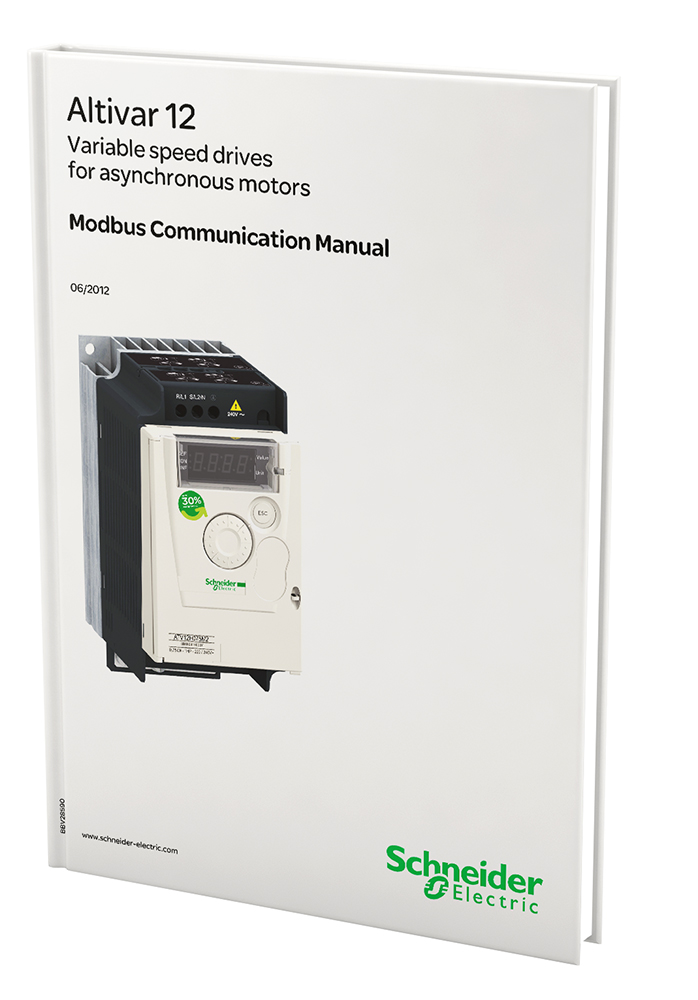

Altivar 12

Modbus Manual

Altivar 12

Catalog

Altivar 12

User Manual

Altivar 12 — Frequently Asked Questions

What types of machines are compatible with the Altivar 12?

The Altivar 12 is designed to control three-phase asynchronous motors up to 4 kW in both industrial and commercial environments. It is particularly well-suited for simple machines, such as:

Material handling: conveyors, automatic gates, rotating billboards

Wellness and fitness equipment: treadmills, medical beds, jacuzzis

Food processing: mixers, slicers, planetary mixers

Woodworking and textile machines: saws, lathes, knitting machines

Pumping and ventilation: centrifugal pumps, exhaust fans, boilers

Its wide compatibility is enhanced by built-in features like PID control, underload detection, and ramp switching, making it suitable for a broad range of applications.

Is the ATV12 compatible with Schneider Electric PLCs and HMIs?

Yes, the ATV12 integrates seamlessly with Schneider Electric systems:

PLCs: such as Twido and M340, via logic inputs or Modbus communication

HMIs: like Magelis, using the built-in RJ45 Modbus port

Accessories: compatible with Schneider tools like the Simple Loader, Multi Loader, and SoMove software

This ensures smooth integration into compact and efficient automation architectures.

What communication options are available for the ATV12?

The ATV12 offers several communication options:

Modbus RTU over RS485 (built-in RJ45 port)

SoMove software for PC configuration (via serial or Bluetooth connection)

LED remote keypad for local access

Simple Loader / Multi Loader for fast configuration duplication

These tools provide flexible setup and maintenance, whether locally or remotely.

What protections are built into the ATV12 to secure the installation?

The ATV12 includes multiple protection features to ensure safe operation:

Thermal protection for the motor (I²t)

Overload and underload detection

Automatic restart after fault clearance

DC injection braking for fast stops

Catch on the fly for smooth restarts after power loss

These features ensure reliable operation even in demanding or unstable environments.

How do I choose the right ATV12 for my application?

To select the correct ATV12 model, consider the following:

Motor power: from 0.18 to 4 kW

Power supply type:

100–120 V single-phase → F1 models

200–240 V single-phase → M2 models

200–240 V three-phase → M3 models

Mounting type:

Heat sink: with integrated cooling

Base plate: for direct mounting or liquid cooling

Environment:

Residential or noise-sensitive → C1 EMC filter included

Industrial → robust design and advanced communication options

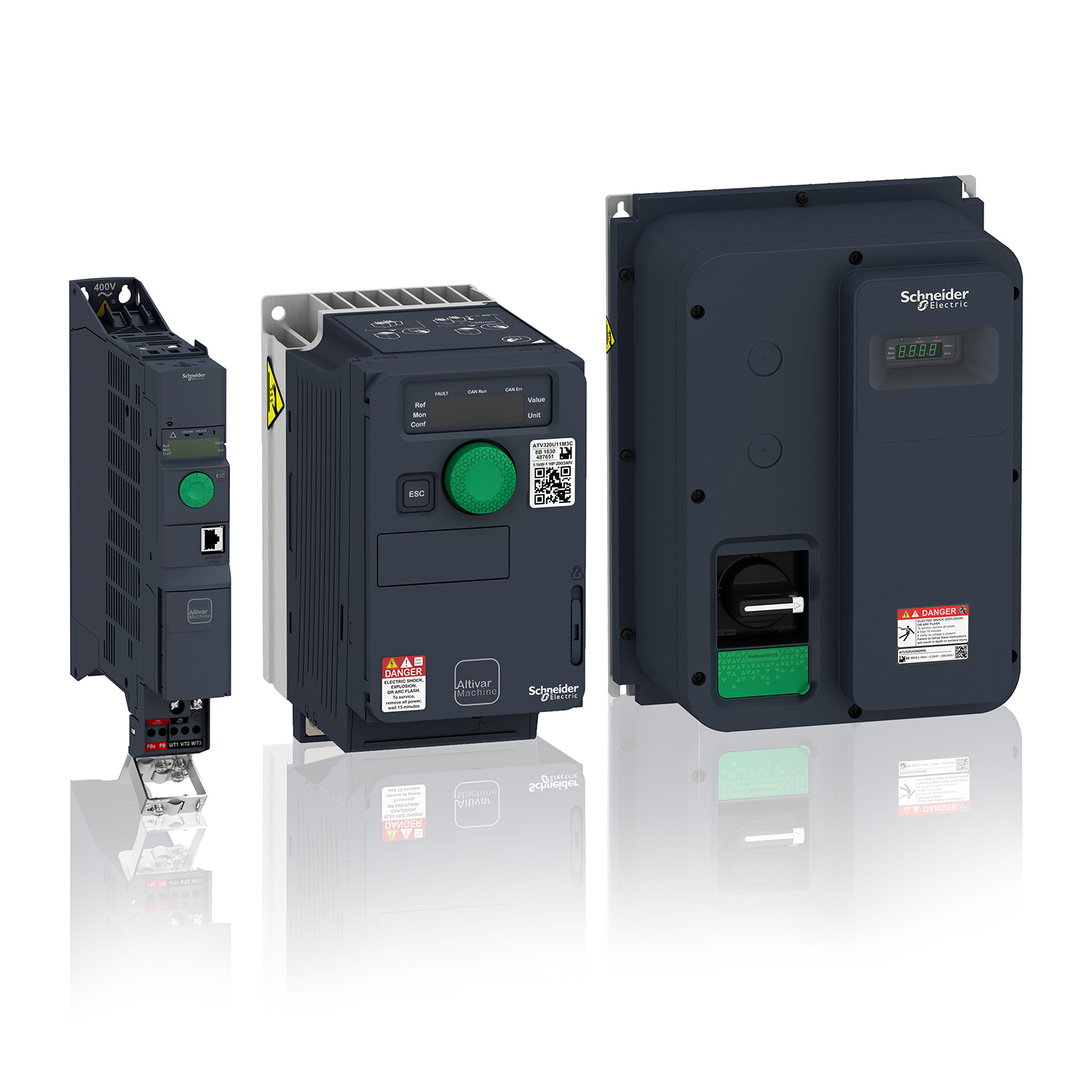

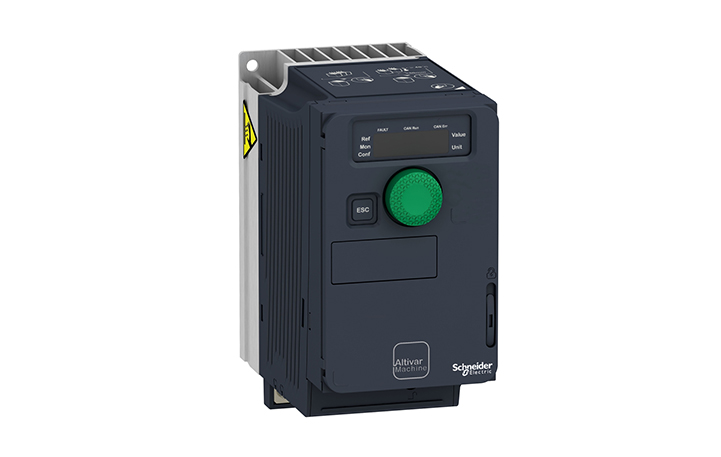

Altivar 320

Discover our full range of for 3 phase synchronous and asynchronous drives - 0.25-30 HP

Reduce your footprint reduce your costs

Small and powerful design with book and compact form factors

Rapid commissioning / recommissioning

Instantly copy and paste your machine configurations through the innovative multi-loader tool and superior Schneider Electric support

Seamless integration reducing design time

Embedded APIs with most common automation architectures as standard

Monitor remotely and decrease downtime

Through out of the box robustness, secure remote machine monitoring and harsh environment protection to 60°C

0.18 to 22 kW (0.25 - 30 hp) frequency converter

For 3 phase synchronous and asynchronous motors

200/400/600v supported voltages

IP66 up to 7.5KW

Shop Altivar 320

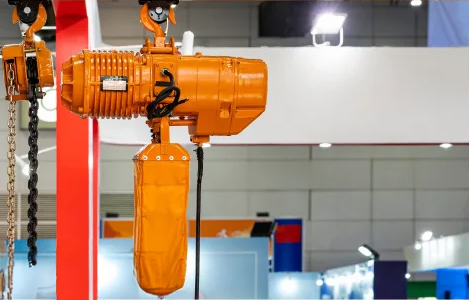

Hoisting

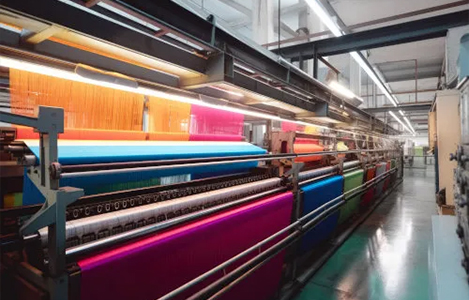

Textiles

Packaging

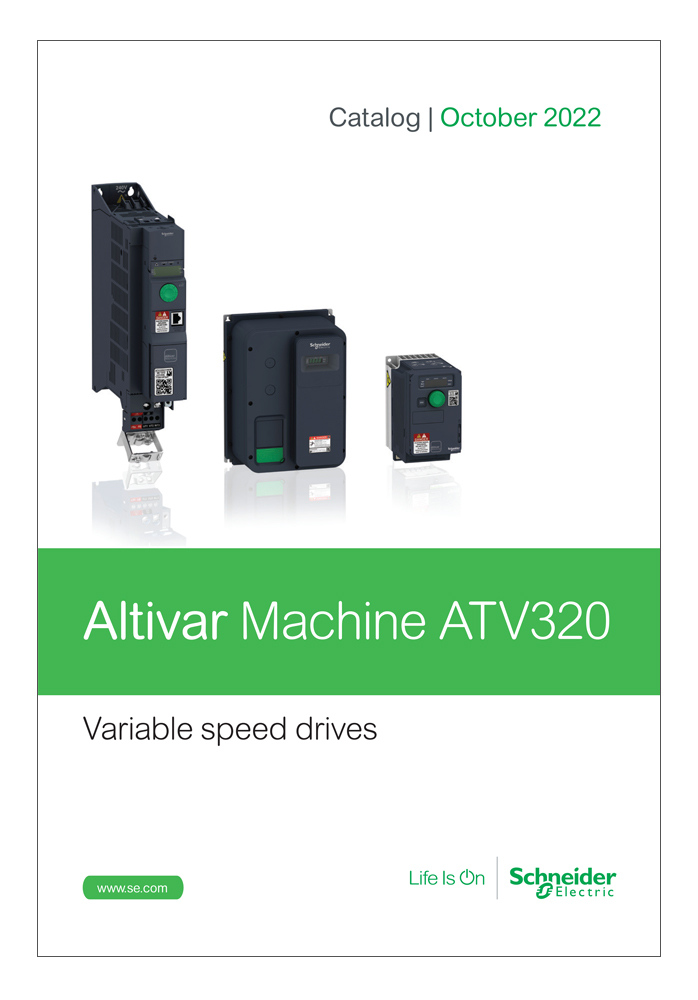

Altivar 320

Catalog

Altivar 320

Programming Manual

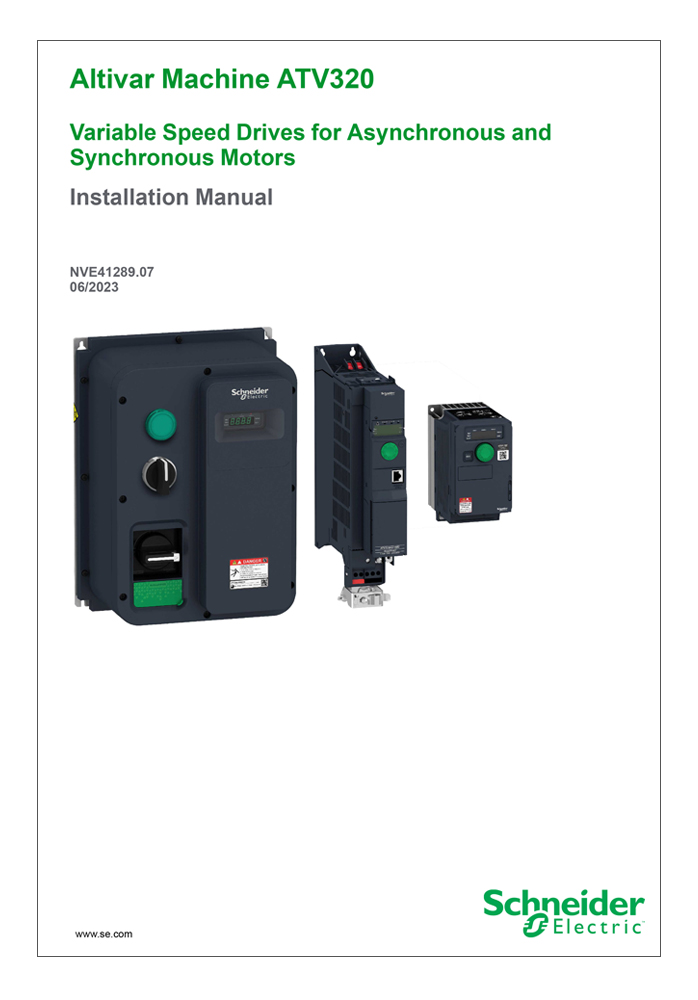

Altivar 320

Installation Manual

Altivar 320 — Frequently Asked Questions

What types of machines are compatible with the Altivar 320?

The Altivar 320 is designed for both simple and complex machine applications, offering reliable control for asynchronous and synchronous motors from 0.18 to 15 kW. It is ideal for:

Material handling: conveyors, hoists, automated storage systems

Packaging and processing: bagging, labeling, food & beverage machinery

Textile and material working: cutting, shaping, spinning

Pumps, fans, and mixers: with energy-efficient motor control algorithms

Its robust design, flexible mounting options, and integrated safety features make it suitable for harsh industrial environments and smart machine architectures.

Is the ATV320 compatible with Schneider Electric PLCs and HMIs?

Yes. The ATV320 is fully integrated into Schneider Electric’s MachineStruxure™ automation platform and supports:

Embedded protocols: Modbus RTU and CANopen

Optional communication cards: Modbus TCP, Ethernet/IP, Profinet, EtherCAT, Powerlink, Profibus DP, DeviceNet

SoMove software: for configuration, diagnostics, and safety setup (via USB, Bluetooth, or Ethernet)

PLCopen-compliant function blocks: for seamless integration with Schneider PLCs such as Modicon M221, M241, and M251

This ensures fast commissioning, real-time diagnostics, and easy integration across automation layers.

What communication options are available for the ATV320?

The ATV320 offers a wide range of connectivity options to fit various automation architectures:

Embedded: Modbus RTU, CANopen

Optional communication cards:

Ethernet-based: Modbus TCP, Ethernet/IP, Profinet, EtherCAT, Powerlink

Serial-based: Profibus DP, DeviceNet

CANopen daisy chain: for multi-drive topologies

I/O-based control: for standalone or basic applications

Simple Loader / Multi Loader for fast configuration duplication

Web server: available via optional Ethernet cards, for remote diagnostics and monitoring

This flexibility allows integration into both legacy and modern industrial networks.

What protections are built into the ATV320 to secure the installation?

The ATV320 includes integrated safety functions compliant with the Machinery Directive 2006/42/EC and IEC 61800-5-2 standards:

STO (Safe Torque Off) – SIL3 / PL e (standard on all models)

SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed) – SIL2 / PL d (available on selected models or via optional safety modules)

GDL (Guard Door Lock) – typically implemented externally, not embedded in the drive

The drive also features a rugged design with 3C3/3S2 conformal coating, allowing operation in environments up to 60°C without external cooling (with derating if needed).

How do I choose the right ATV320 for my application?

To select the appropriate ATV320 model, consider the following criteria:

Motor power: from 0.18 to 4 kW

Power rating: from 0.18 to 15 kW

Voltage class:

200–240 V single-phase → M2

200–240 V three-phase → M3

380–500 V three-phase → N4

525–600 V three-phase → S6

Form factor:

Book: for side-by-side mounting in narrow enclosures

Compact: for shallow cabinets or direct machine integration

Environmental conditions:

For harsh environments, choose models with 3C3/3S2 coating

For dusty or washdown areas, consider IP65/IP66 versions

Communication needs:

Select models with appropriate embedded protocols or optional fieldbus cards based on your network architecture

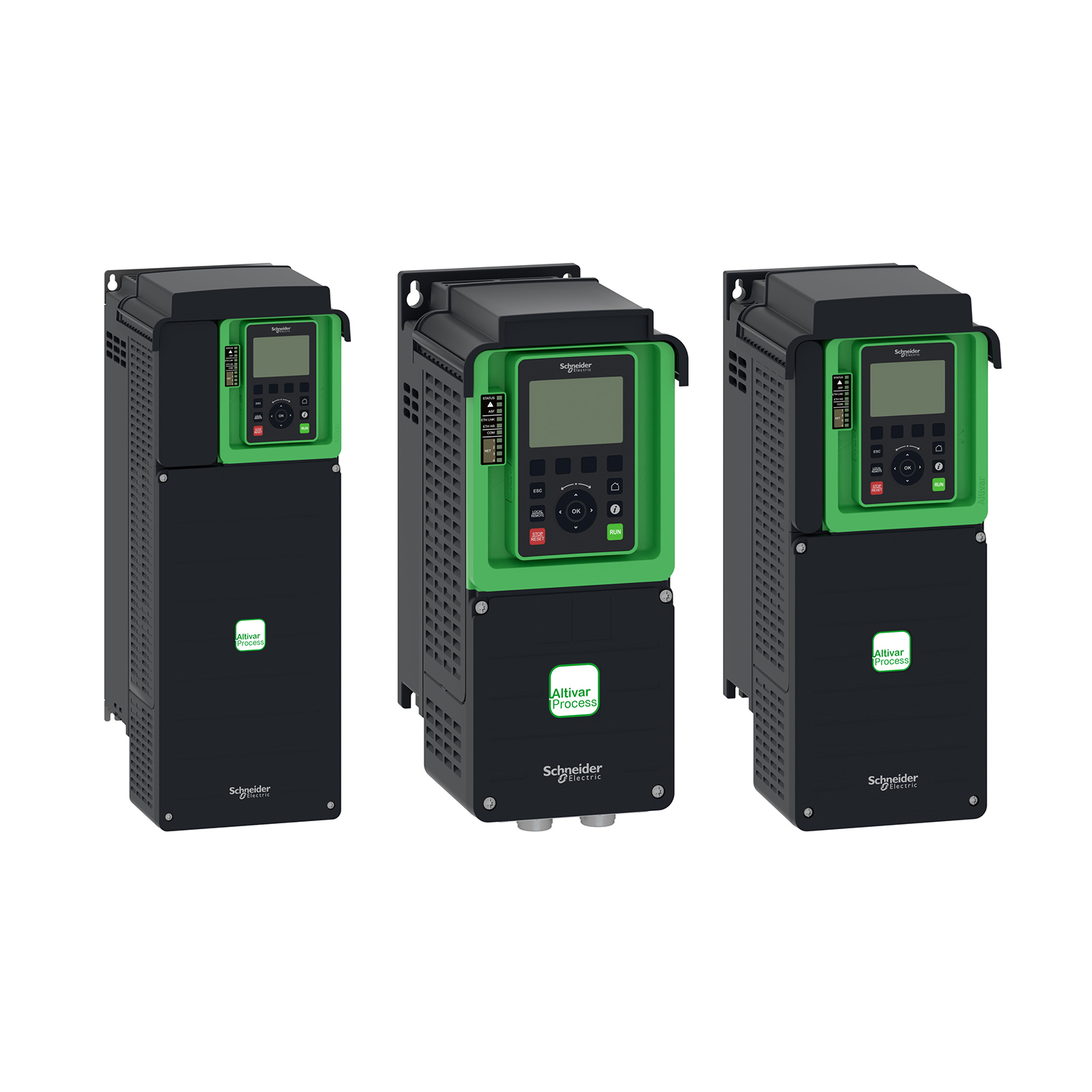

Altivar Process ATV630

Variable Speed Drives for pumps, fans or compressors up to 500 hp

Advanced connectivity

Integrated communication ports, including Ethernet and Modbus, facilitating integration into energy management systems

Robustness and durability

Designed to operate in harsh environments with IP21 protection and adaptation to a wide range of industrial conditions

Process optimization

Embedded APls with most common automation architectures as standard

0.75 kW to 315 kW (1 - 500 hp) frequency converter

For 3 phase synchronous and asynchronous motors

380 V to 480 V

IP21

Shop Altivar 630

Food and Beverage

Oil and Gas

Water Management

Altivar ATV600

Catalog

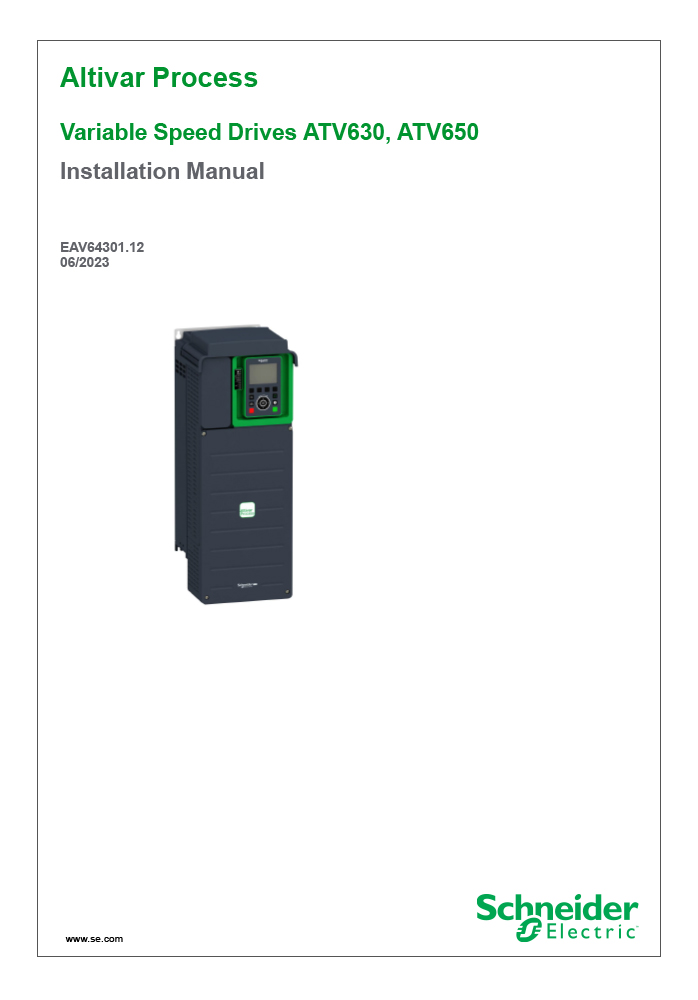

Altivar ATV600

Installation Manual

Altivar ATV600

Getting Started Guide

Altivar ATV600 — Frequently Asked Questions

What types of applications are compatible with the Altivar Process ATV600?

The ATV600 is designed for fluid and HVAC process applications in industrial and utility environments. It supports:

Pumps (clean water, wastewater, irrigation, chemical dosing)

Fans (cooling towers, ventilation, air handling units)

Compressors (air, gas)

Blowers, centrifuges, and mixers

Energy-intensive infrastructure (district heating, desalination, oil & gas)

It supports asynchronous, synchronous, and special motors from 0.75 kW to 800 kW (up to 1.5 MW in some variants), making it ideal for demanding process control.

Is the ATV600 compatible with Schneider Electric automation systems?

Yes. The ATV600 is fully integrated into EcoStruxure™ Plant and Process architectures. It supports:

Embedded protocols: Modbus TCP, Ethernet/IP, CANopen, Modbus RTU

Optional communication modules: Profibus DP, Profinet, EtherCAT, BACnet/IP, DeviceNet

Integration with PLCs: Modicon M340, M580, and SCADA systems

SoMove and EcoStruxure Control Expert: for configuration, diagnostics, and commissioning

This ensures seamless integration into both new and existing automation infrastructures.

What communication options are available for the ATV600?

The ATV600 offers advanced connectivity:

Standard embedded:

Ethernet (Modbus TCP, Ethernet/IP)

Serial (Modbus RTU, CANopen)

Optional modules:

Profibus DP, Profinet, EtherCAT, BACnet/IP, DeviceNet

Web server: for remote diagnostics and monitoring

Bluetooth and USB: for local configuration via SoMove

This makes it highly adaptable to modern industrial networks and IoT-ready environments.

What protections and services are built into the ATV600?

The ATV600 includes embedded services and protection features designed for process reliability:

Embedded energy monitoring and asset management

Motor and drive protection: thermal, overload, short-circuit, phase loss

Conformal coating (3C3/3S2) for harsh environments

Safe Torque Off (STO) as standard

Optional safety modules for extended safety functions (SIL2/SIL3)

It also supports predictive maintenance and condition monitoring, reducing downtime and improving operational efficiency.

How do I choose the right ATV600 for my application?

To select the correct ATV600 model, consider:

Motor type: asynchronous, synchronous, or special

Power rating: from 0.75 kW to 800 kW (up to 1.5 MW in some cases)

Voltage class:

380–480 V

500–690 V

Application type: pump, fan, compressor, etc.

Environment:

Harsh or corrosive → choose models with 3C3/3S2 coating

High IP protection available for outdoor or washdown areas

Control needs:

Basic speed control or advanced process control

Safety requirements (STO, SS1, etc.)

Communication protocols for integration

Schneider Electric provides a Product Selector and SoMove software to help configure and size the right drive.

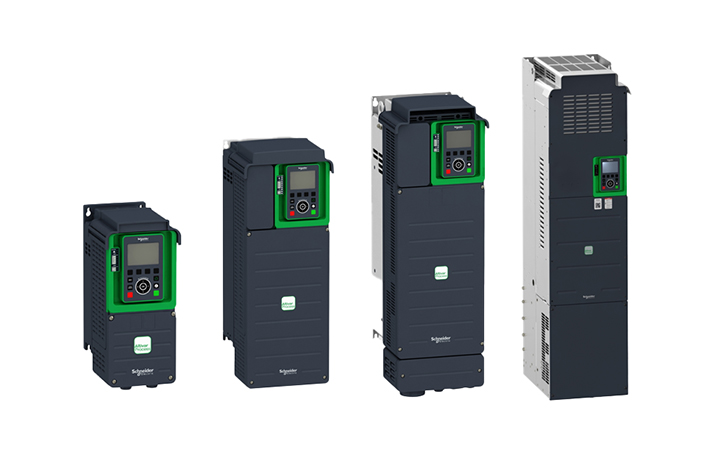

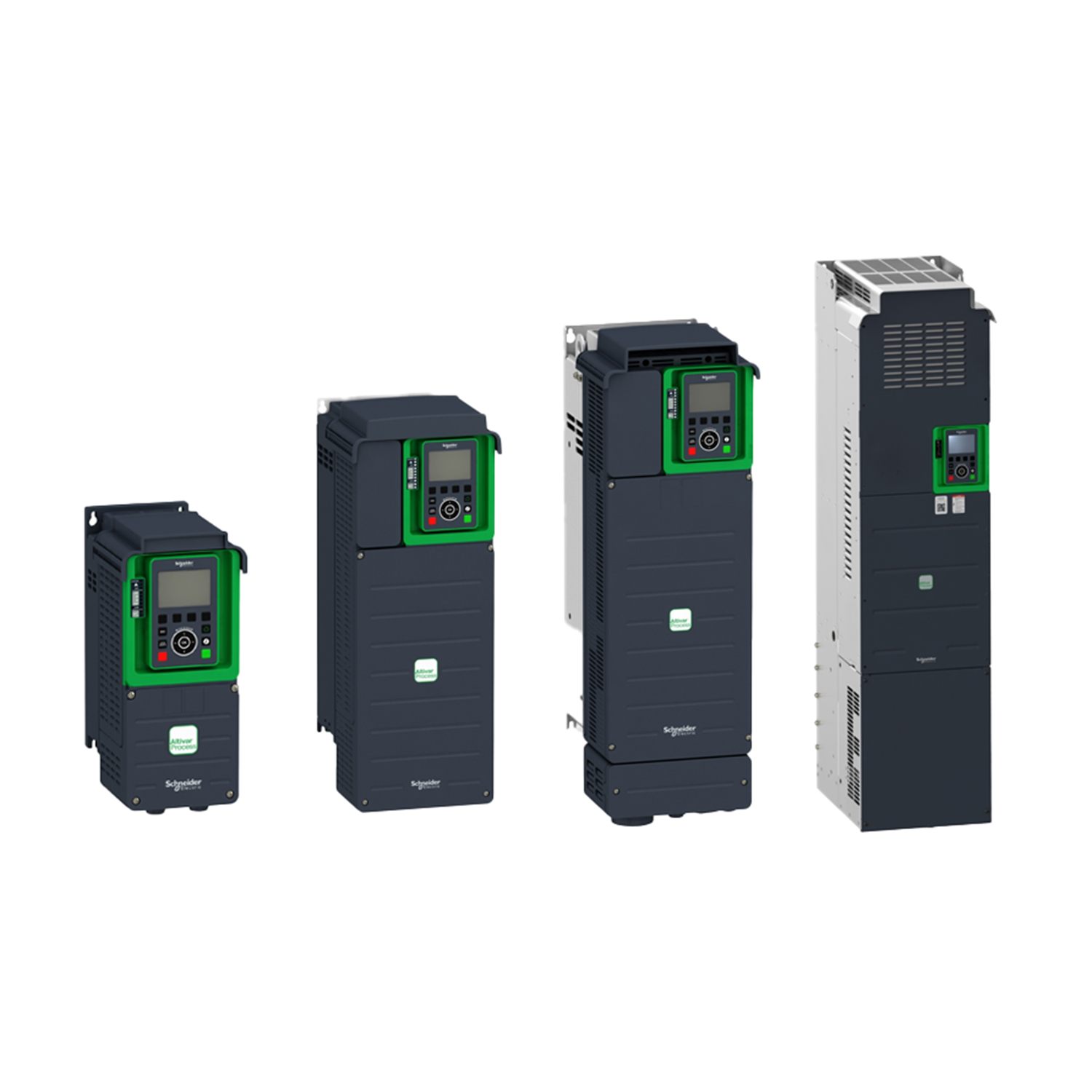

Altivar Process ATV930

Variable Speed Drive for conveyors, cranes or mills up to 500 HP (315 kW)

Compact and flexible installation

Wall-mounted models mount directly to panels, saving space and integrating easily into industrial setups.

Protection for industrial environments

With IP21 or IP55 ratings, these drives suit dusty or humid areas without extra enclosures

High-performance motor control

They support synchronous and asynchronous motors up to 90 kW (IP21), for light or heavy-duty loads.

Integrated connectivity and diagnostics

Built-in ports (EtherNet/lP, Modbus TCP), web server, and logging enable real-time monitoring and maintenance.

1 -500 hp (0.75 kW to 315kW) frequency converter

For 3 phase synchronous and asynchronous motors

200 V to 600 V

IP21

Shop Altivar 930

Food and Beverage

Oil and Gas

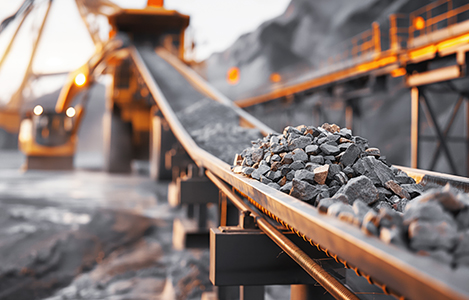

Mining and Metals

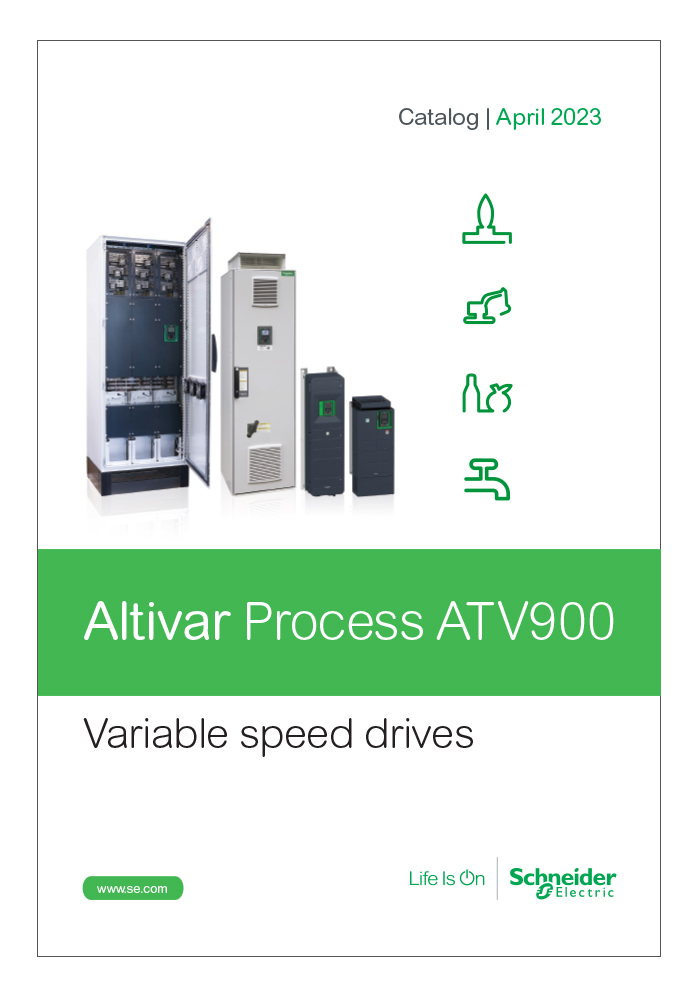

Altivar ATV900

Catalog

Altivar ATV900

User Manual

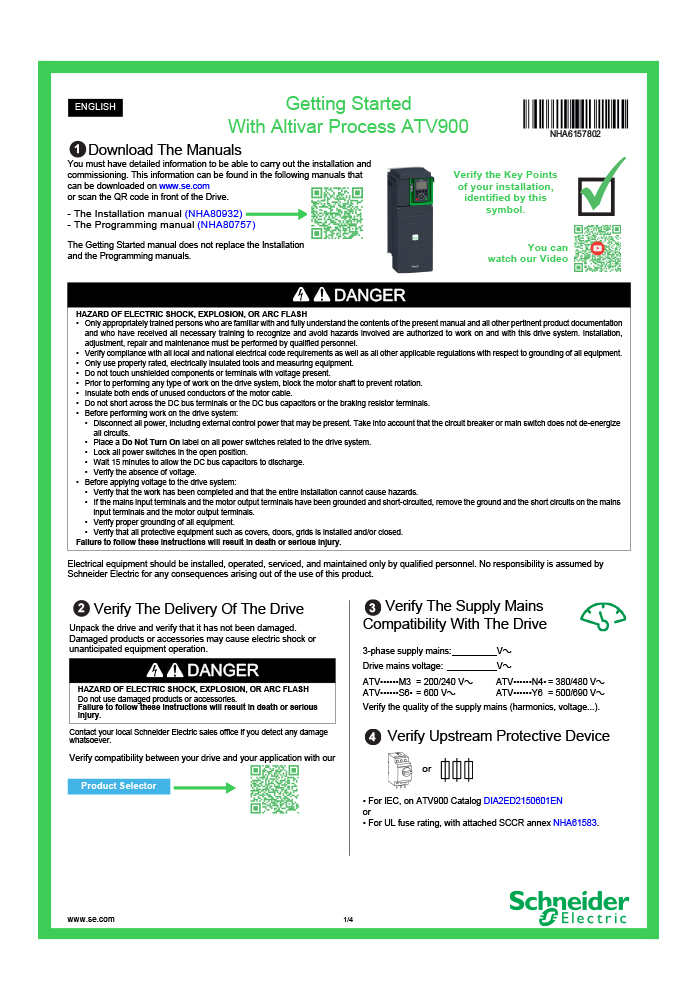

Altivar ATV900

Getting Started Guide
