Nexans

WIRE NMD (LOOMEX) 2C#10 RED X150M

WIRE-NMD2C10REDX150 MFG #: 12000029
NMD2C10REDX150_1 - cebea1bb-f636-4c58-a741-7bd47c1b505e.jpg
  • Best Seller: Yes
  • Conductor Material: Copper
  • Diameter: 0.48" (12.192 mm)
  • Direct Burial: No
  • Enabled: Yes
  • Flame Spread Rating: FT1
  • Inner Insulation Material: Nylon
  • Jacket Material: PVC
  • Manufacturer: WIRE
  • Manufacturer Catalogue: NMD2C10REDX150
  • Manufacturer Category: NMD 12-10
  • Manufacturer Product Code: NMD90 2C 10 (1)
  • Maximum Operating Temperature: 90
  • Maximum Operating Voltage: 300
  • Mfr Vendor ID: 554
  • Minimum Operating Temperature: -10
  • Number of Conductors: 2
  • Overhead Installation: No
  • Packing Type: Reel
  • Restricted Shipping: Yes
  • Special Attributes: Best Seller, Restricted Shipping
  • SPF Product ID: 762349
  • Standards: CSA
  • Unit of Measure: M
  • UPC: 97023000001
  • Web Group: 1100300000000
  • Wet Location: No
  • Wire And Cable Type: NMD-90
  • Wire Gauge: 10
CSA File #LL23462 Class 5821 02

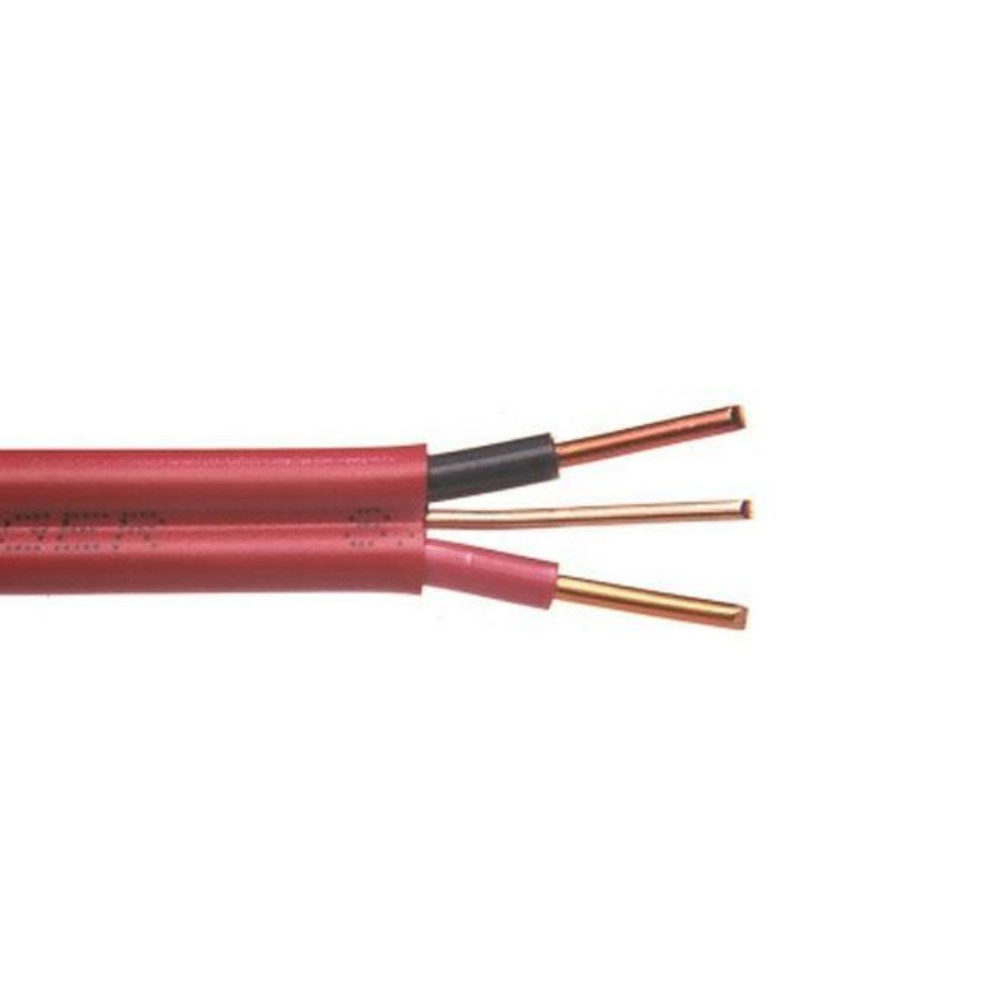

Two copper conductors with 90ºC PVC Nylon T90 Nylon insulation. Bare bonding wire and overall jacket of moisture resistant and flame retardant PVC, with FT1 rating.
Rated 300 volts. RoHS compliant.

Application
For open or concealed wiring in dry or damp locations where not exposed to mechanical injury.
Minimum recommended handling temperature minus 25°C for 2 conductor cables.
Maximum conductor temperature 90°C.
Approved for use with ceiling fixtures.

Electrical characteristics
Maximum operating voltage 300 V

Usage characteristics
Maximum operating temperature 90 °C
