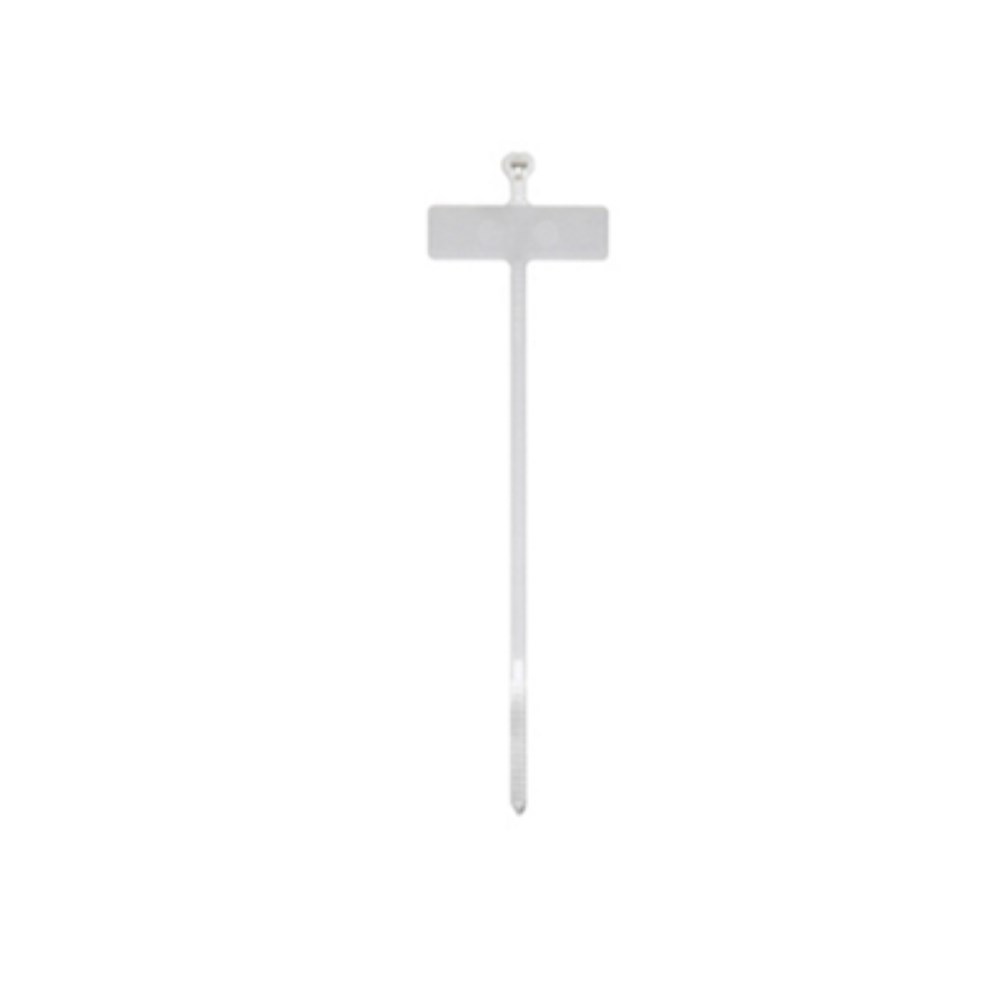

CABLE TIE 3.60IN X 0.093IN W 18LB NYLON NATURAL

Identification Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 91.44mm (3.6 Inches), Width of 2.36mm (0.093 Inches), Thickness of 25.4mm (1.0 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Marking Pad Size of 25.4mm (1.0 Inch) x 7.95mm (0.313 Inch), Military Specified (MIL-SPEC MS3368-5-E)

North American Specifications (UNSPSC)
UNSPSC 39121703 Cable ties
IGCC 5040 I.D. Ties
Brand Name Ty-Rap
Type Identification Cable Tie
Standard UL E49405
Width 0.094 in 2.4 mm
Length 3.62 in 92 mm
Thickness 0.038 in 0.97 mm
Bundle Diameter 0.39 to 0.63 in 10 to 16 mm
Material Nylon/Polyamide 6.6
Color Natural
Lock Mechanism Stainless Steel Barb
Tensile Strength 18 pounds 80 newtons

European Specifications (ETIM)
ETIM EC000046 Cable tie
Band width 2.36mm
Length belt/tape/tie 91.44mm
Tie thickness 0.975mm
Max. bundle diameter 80mm
Min. holding force 80N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Natural colour
Transparent N
Reflective (fluorescent) N
Text strip Adjacent to bundle
Solvable fastener N
VG approval N
MIL approval Y
UL approval N

Packaging
Inner Quantity 500
Inner Dimensions (inches) 8.2x4.9x3.6
Outer Quantity 5000
Outer Dimensions (inches) 10.7x10.2x9.3
Weight Uom 1.25 lbs. per 1000
