Schneider Electric

DISJONCTEUR A BOITIER MOULE 600V 100A

SCH-HDA36100U53X MFG #: HDA36100U53X
SCH-HDA36100U53X_1 - af93fcbd-d332-42ac-ad67-39938ca1f372.jpg
  • Catégorie manufacturier: 0SMB-35042
  • Discontinué: Non
  • Expédition Restreinte: Non
  • Fabriqué au Canada: Non
  • Groupe Web: 1080301020000
  • Id fournisseur MFR: 599
  • Id produit SPF: 1360389
  • Manufacturier: SCHNEIDER ELECTRIC
  • Marque: FlexSet breakers SE
  • Meilleur Vendeur: Non
  • Produit Vedette: Non
  • Produit Vert: Non
  • Produit volumineux: Non
  • Produits dangereux: Non
  • Pur UOM: E
  • Quantité Limité: Non

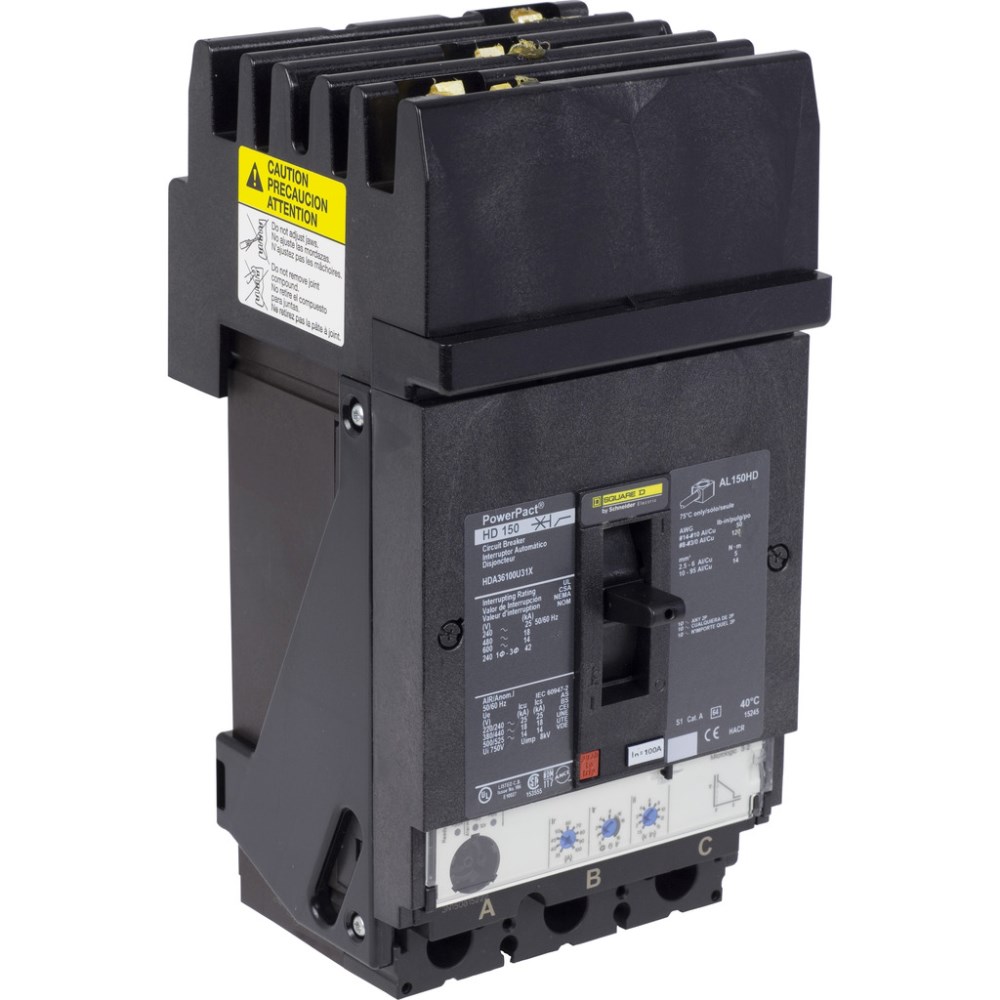

The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This PowerPact H, circuit breaker has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 14 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. This breaker has a Micrologic Energy with a 5.2E trip unit and a LSI function. Dimensions for this breaker are 9.73 in (H),4.48 in (W),4.8 in (D) and has an ambient temperature of 40 °C. This product comes with an 18 months warranty.
